Findhorn Bridge

Comments :

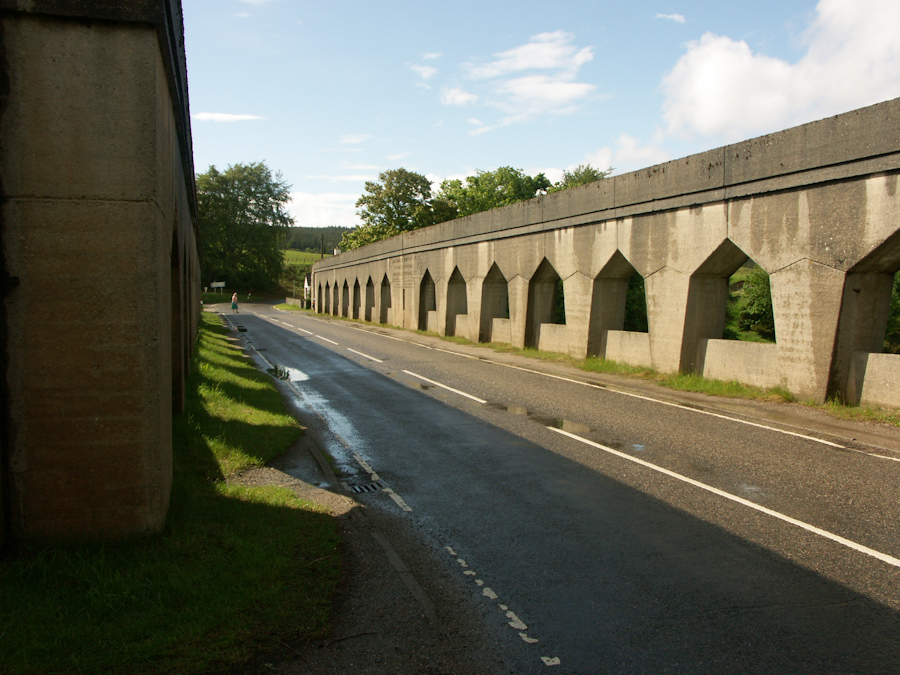

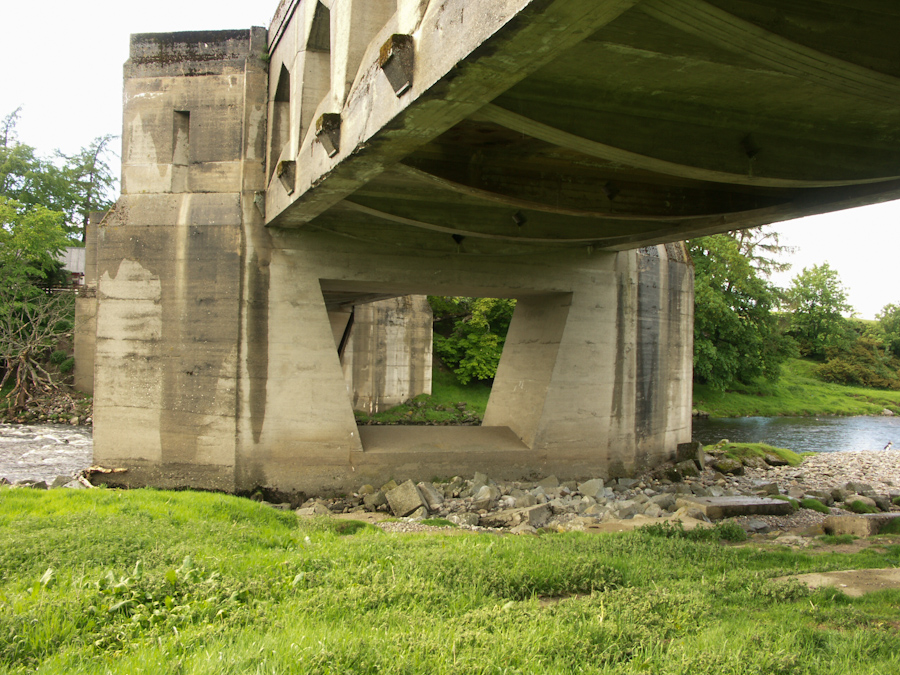

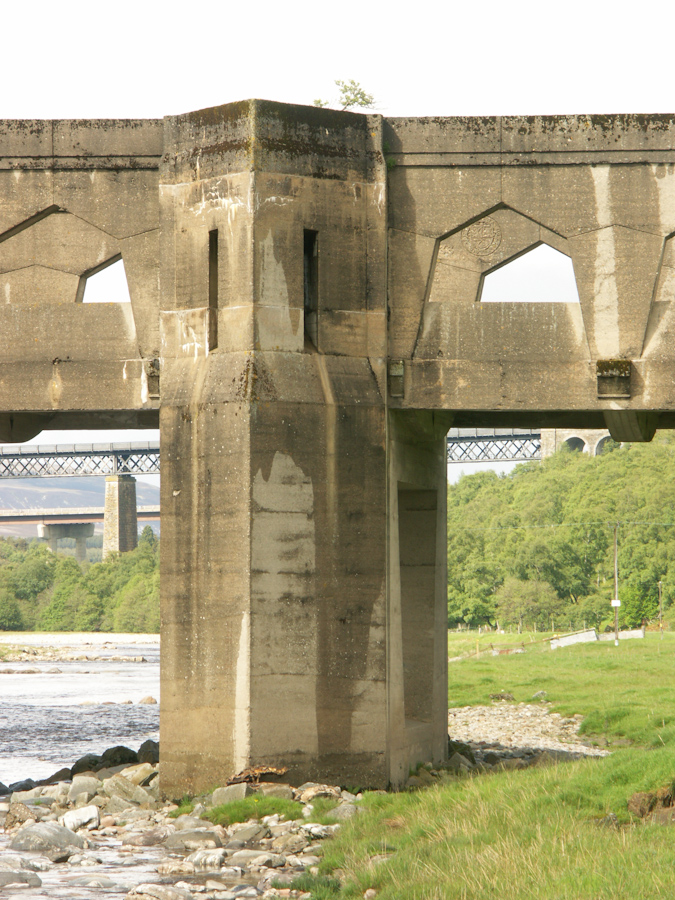

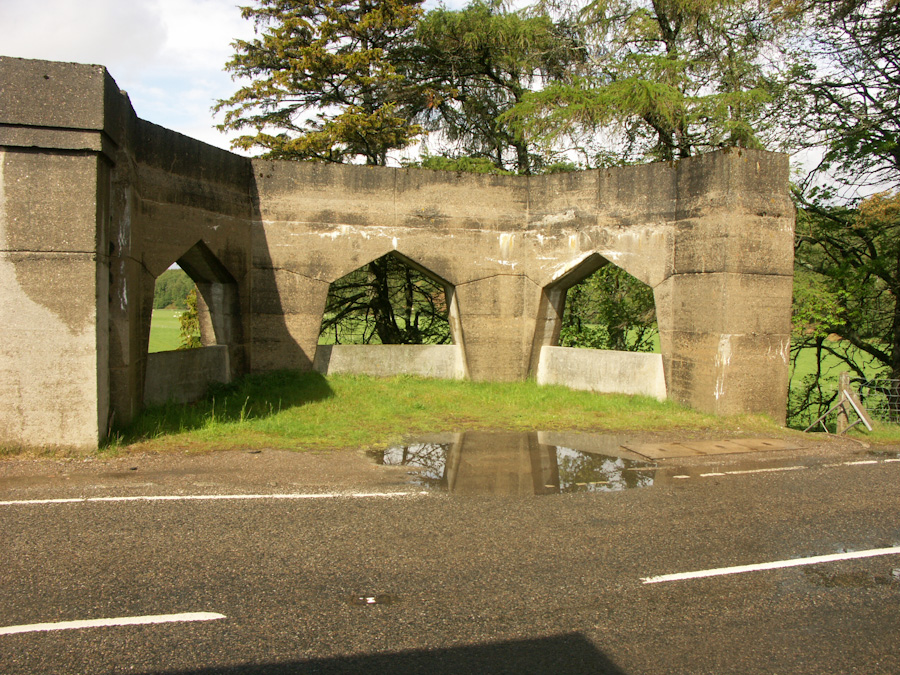

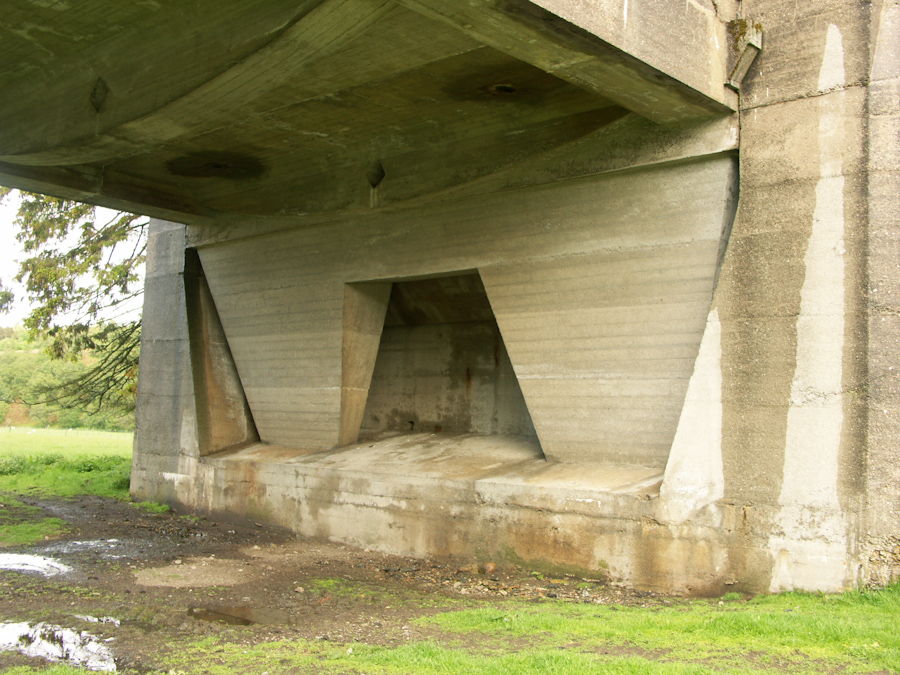

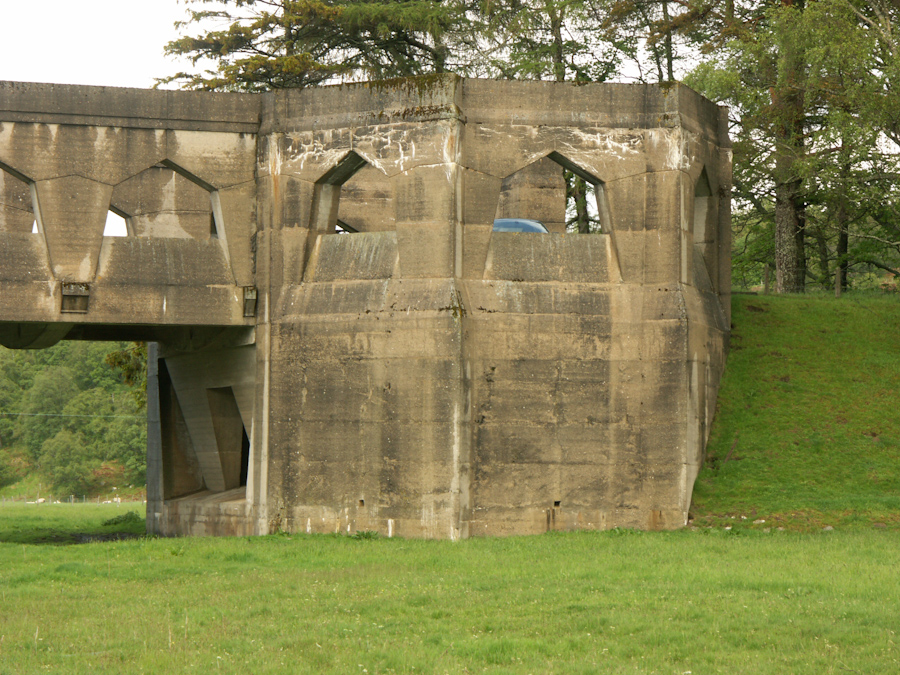

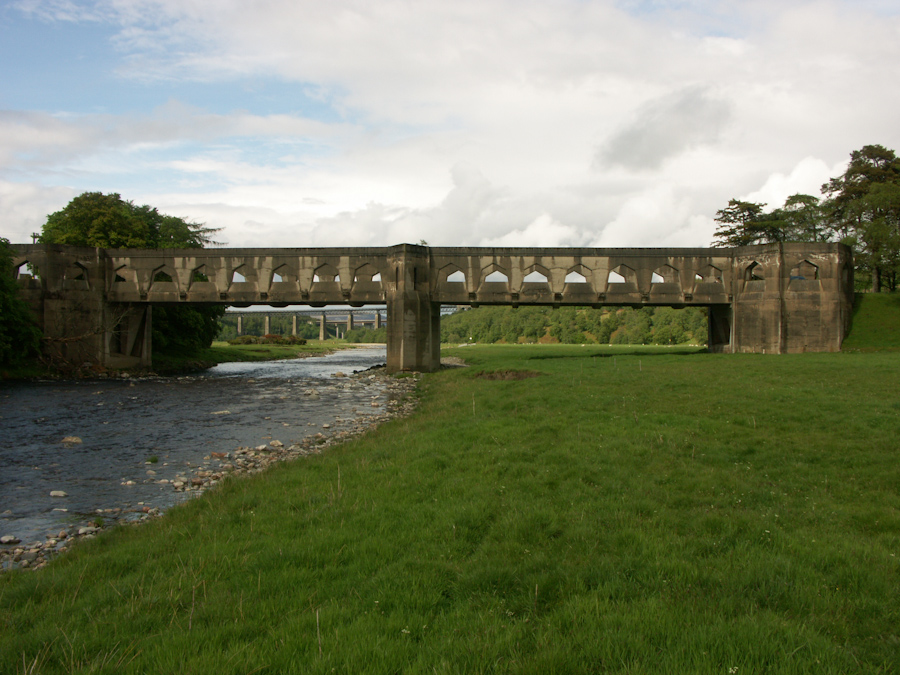

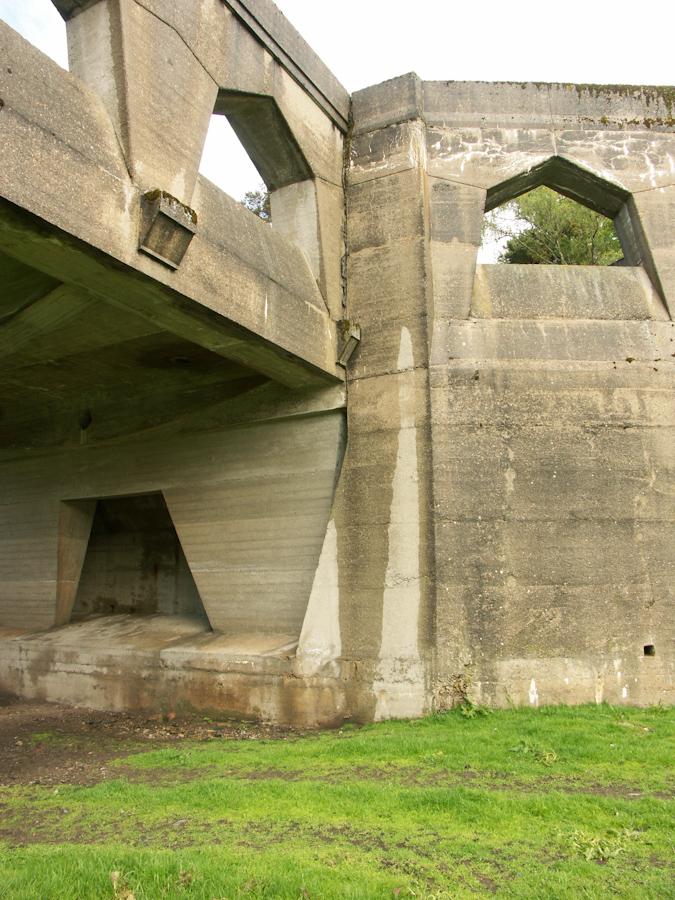

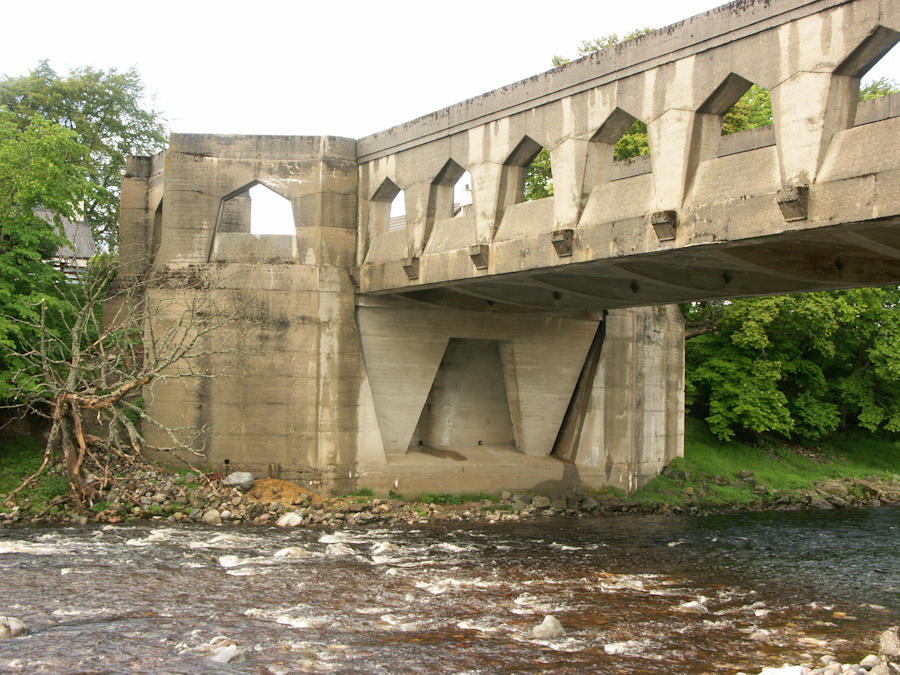

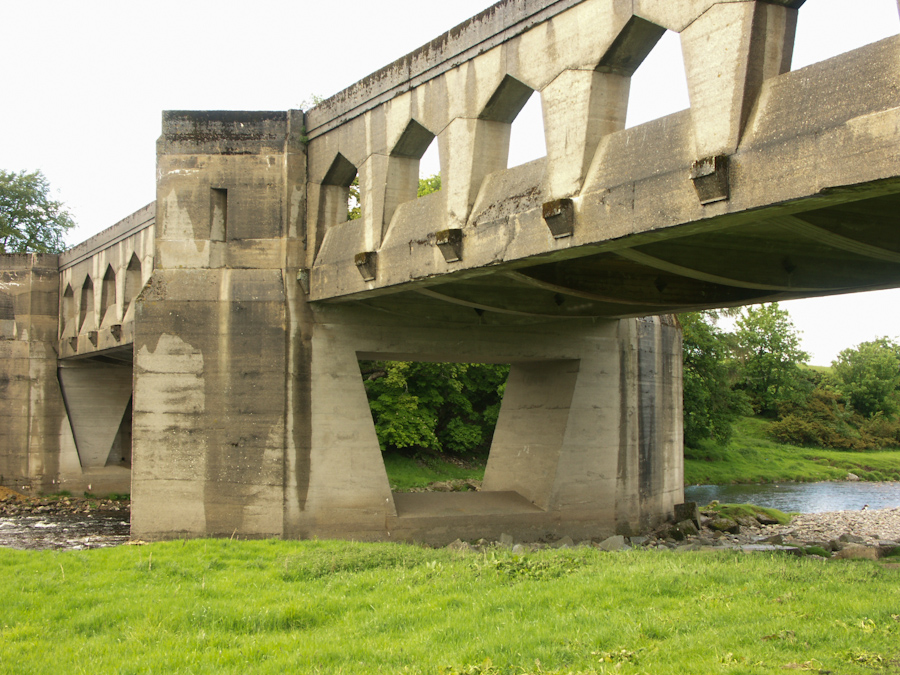

There are two trusses, each 98 feet by 36 feet, and they meet on a curiously split central pier. Each truss has two beams supporting a concrete deck which is secondarily supported by transverse beams. These are bowed, and correspond in their spacing to the verticals of the arcade under which they protrude lightly as bosses. [1] The trusses are in situ concrete Vierendeel-type beams, 98 feet long. The river Findhorn runs 30 feet deep.
